SLAP: Slapband-based Autonomous Perching Drone
with Failure Recovery for Vertical Tree Trunks

Julia Di¹, Kenneth A. W. Hoffmann¹, Tony G. Chen², Tian-Ao Ren¹, Mark Cutkosky¹

¹Stanford University ²Georgia Institute of Technology

📄 This paper was accepted to IEEE Aerospace Conference 2026

Abstract

Perching allows unmanned aerial vehicles (UAVs) to reduce energy consumption, remain anchored for surface sampling operations, or stably survey their surroundings. Previous efforts for perching on vertical surfaces have predominantly focused on lightweight mechanical design solutions with relatively scant system-level integration. Furthermore, perching strategies for vertical surfaces commonly require high-speed, aggressive landing operations that are dangerous for a surveyor drone with sensitive electronics onboard.

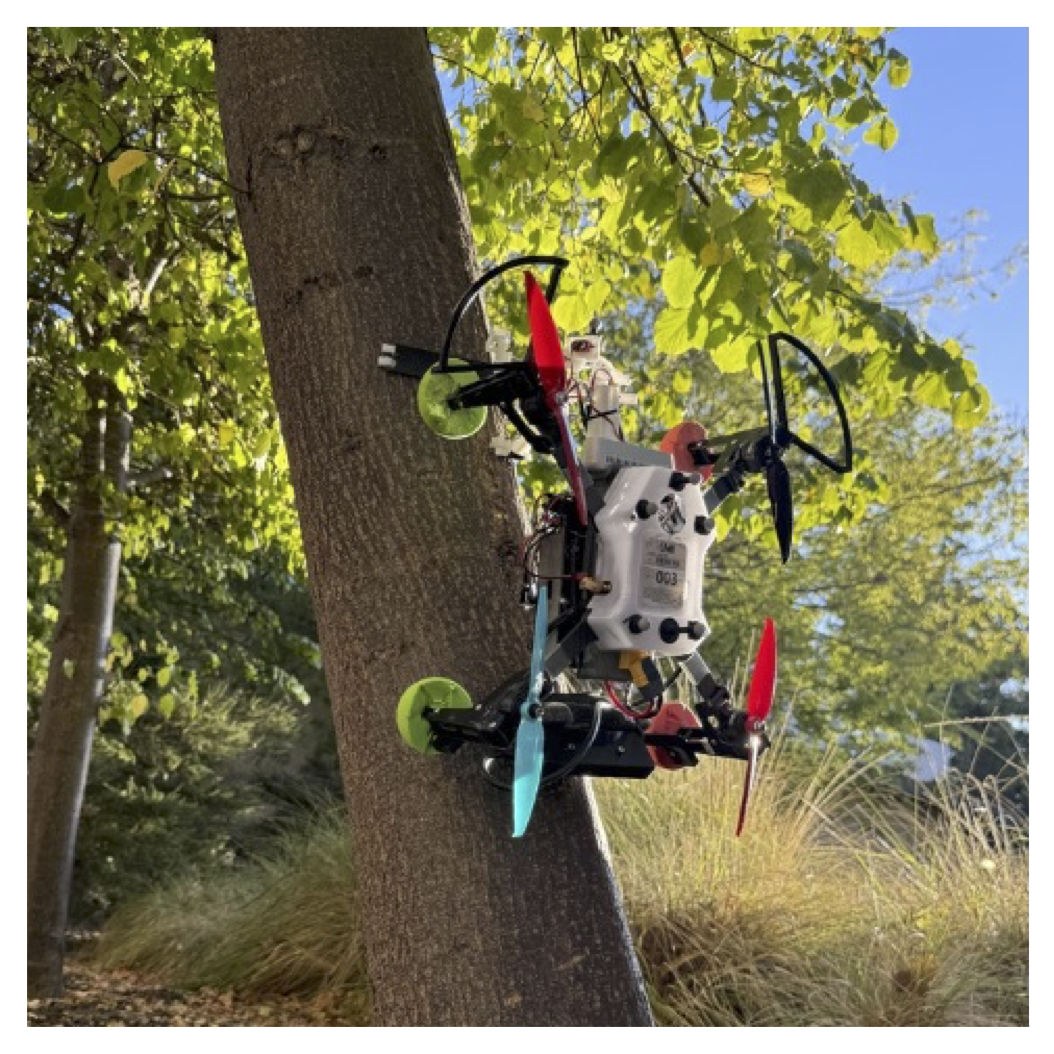

This work presents the preliminary investigation of a perching approach suitable for larger drones that both gently perches on vertical tree trunks and reacts and recovers from perch failures. The system in this work, called SLAP, consists of a vision-based perch site detector, an IMU-based perch failure detector, an attitude controller for soft perching, an optical close-range detection system, and a fast active elastic gripper with microspines made from commercially-available slapbands.

We validated this approach on a modified 1.2 kg commercial quadrotor. Indoor flight experiments achieved a 75% perch success rate across 20 trials, and 100% perch failure recovery across induced failures.

Video Demo

System Overview

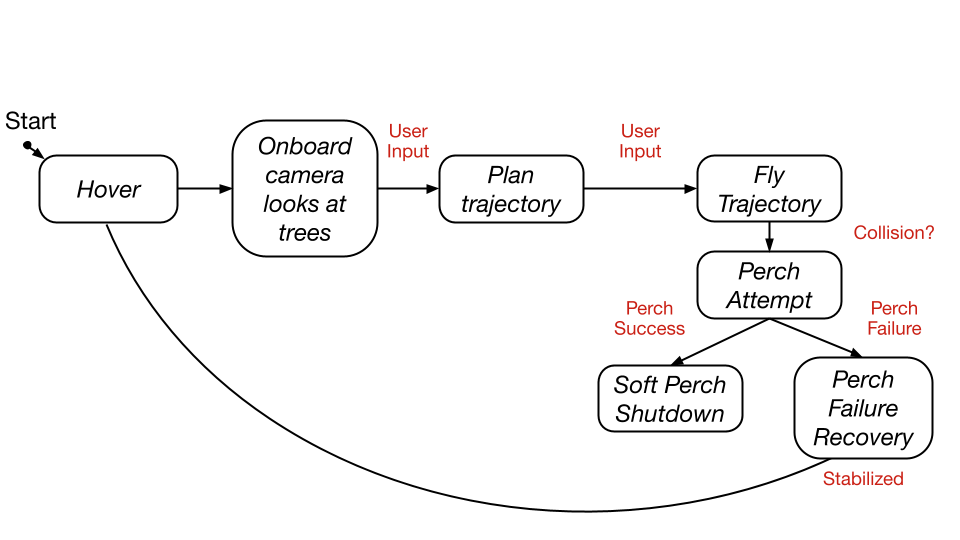

The SLAP system consists of five main components that work together to enable autonomous perching on vertical tree trunks:

Vision-based Perch Site Detector: Uses an Intel Realsense D435 RGBD camera with a deep-learned model based on PercepTree to detect suitable tree sections and select optimal perch sites based on tree diameter, bark texture, and contour.
IMU-based Perch Failure Detector: Monitors drone attitude using accelerometer data to detect the onset of slipping within 100ms, enabling rapid recovery maneuvers.
Attitude Controller for Soft Perching: Implements a gentle perch controller that decreases thrust from hover to zero over 4 seconds at 100Hz to minimize stress on the gripper and prevent microspine slippage.
Optical Close-range Detection System: Uses a time-of-flight sensor (VL53L1X) to measure distance to the tree and electronically trigger the gripper when the threshold distance is reached.
Fast Active Elastic Gripper: Features bistable tape springs modified from commercially available slap bands that snap around the tree trunk. Microspines at the tips of the slapbands penetrate the bark for secure attachment.

Hardware

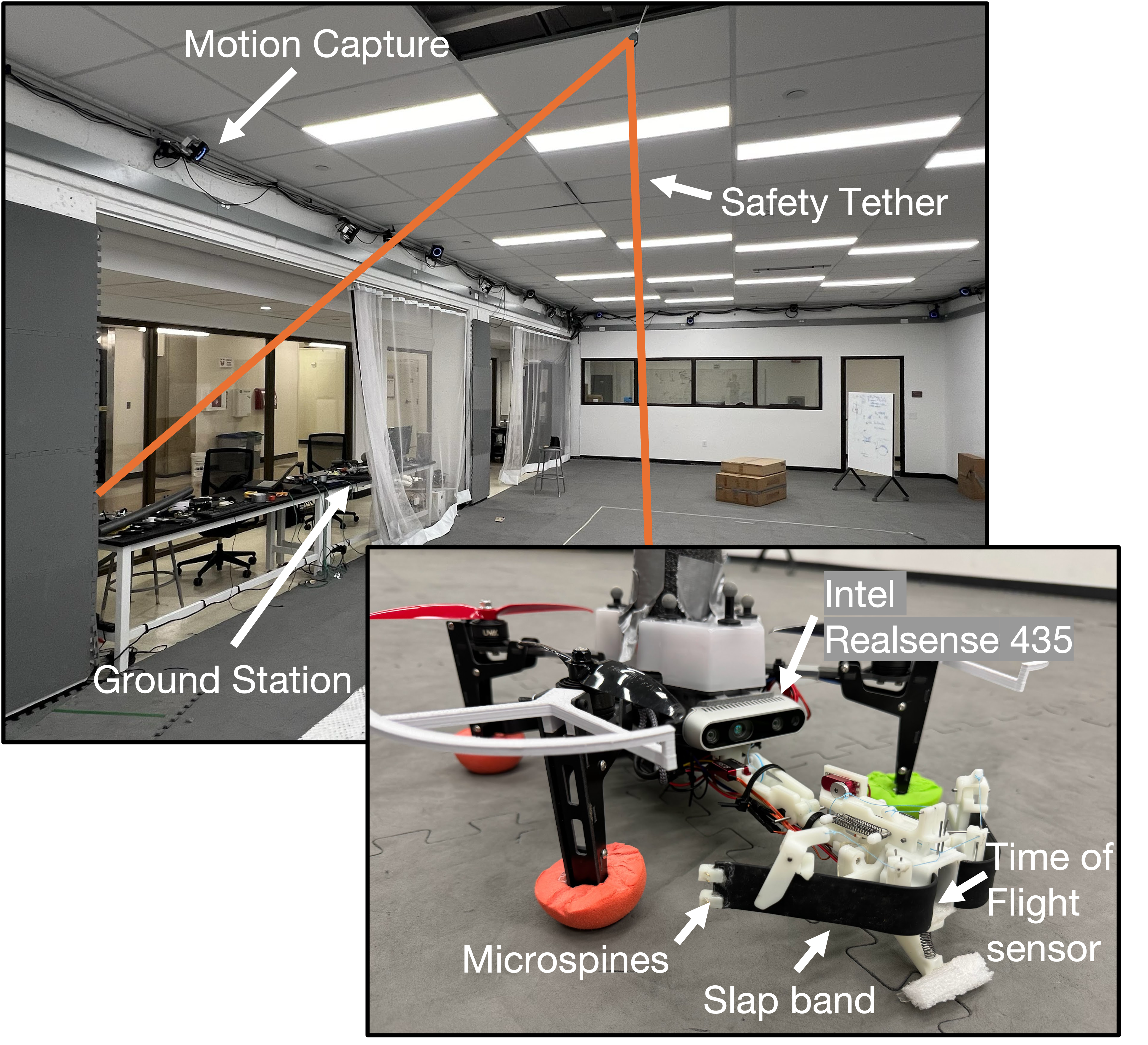

The SLAP system is built on a modified Uvify IFO-S quadrotor platform with the following key hardware components:

Base Platform

Quadrotor: Modified Uvify IFO-S (1kg stock, 1.2kg with perching hardware)
Onboard Computer: NVIDIA Jetson Nano for low-level control and PX4 autopilot interface
Off-board Computer: NVIDIA Orin for high-level processing (indoor flights)
Safety Features: 3D-printed PLA bumper with foam pool noodle cushioning, foam balls on legs for soft landings

Active Gripper Design and Avionics

Gripper Weight: 125g (3D-printed on Formlabs Form 3+ with Rigid 4k resin)
Grasp Mechanism: Two bistable tape springs (BRANDWINLITE BW-SB05-BK) that snap closed in 6ms
Microspines: Four organ needles per band with epoxy-filled eyelets, glued in 3D-printed tiles
Trigger System: MKS HS75K servo pulling friction latch via high-strength fishing line tendons
Compliance System: Rubber bands for yaw compliance, cylindrical tubes with linear spring for suspension
Pitch-down Pivot: Spring-loaded pivot allowing up to 120° pitch after successful grasp

Sensing and Perception

RGBD Camera: Intel Realsense D435 (0.3-3m range) for tree detection and depth sensing
Distance Sensor: VL53L1X time-of-flight sensor for precise gripper triggering
IMU: For perch failure detection and attitude control

Results

The SLAP system was validated through comprehensive indoor flight experiments at the Boeing Flight & Autonomy Laboratory at Stanford University:

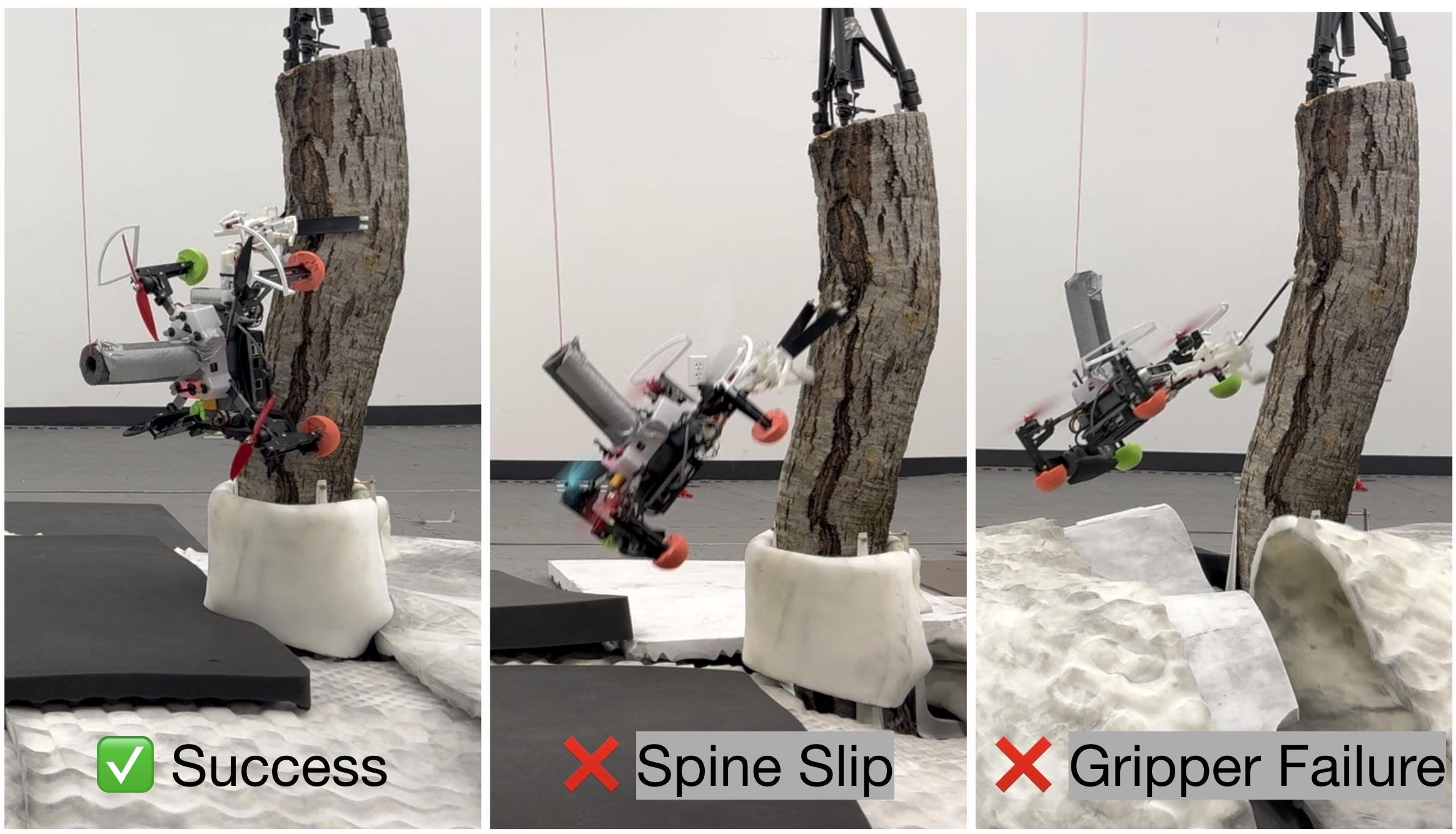

Perching Success Rate

Overall Success Rate: 75% across 20 human-in-the-loop autonomous flight trials
Success Definition: Tree detection, trajectory generation, site reach, gripper trigger, and maintained attachment for ≥10 seconds
Failure Analysis: 5 failed trials total:
- 2 failures: Microspines slipping after successful perch (before 10s mark)
- 2 failures: Slap bands slipping from holders (insufficient glue during prototyping)
- 1 failure: Catastrophic gripper plastic failure

Failure Recovery Performance

Recovery Success Rate: 100% (2/2 trials)
Detection Speed: IMU-based failure detection identified slipping onset within 100ms
Recovery Method: Drone stabilized at 1m offset from tree after failure detection
Test Method: Controlled failures induced by filing down microspines to reduce engagement

Citation

@misc{dihoffmann2026slap,
  title={SLAP: Slapband-based Autonomous Perching Drone with Failure Recovery for Vertical Tree Trunks},
  author={Di, Julia and Hoffmann, Kenneth A. W. and Chen, Tony G. and Ren, Tian-Ao and Cutkosky, Mark},
  year={2026},
  eprint={2601.00238},
  archivePrefix={arXiv},
  primaryClass={cs.RO},
  url={https://arxiv.org/abs/2601.00238}
}
